Diaphragm filter press procedures

Diaphragm filter press procedures

1. Always check the tank level and the sealing of various valve parts and oil connections.

2. The hydraulic oil uses HM46 or HM48 and must be kept clean. When the new machine is running for one week, the hydraulic oil should be replaced once. When changing the oil, the hydraulic oil used in the fuel tank and the oil cylinder should be drained and the fuel tank should be cleaned. After one month, it should be replaced once, and then replaced every six months. Ensure the normal use of the filter press.

3. Do a good job in the operation record, record the operation status of the equipment and the problems that have occurred. If there is any fault, it should be repaired in time, and it is forbidden to operate with faults.

4. The feed pressure must be controlled below the rated pressure (shown by the pressure gauge).

5. When the filtration starts, the feed valve should be slowly opened. At first, the filtrate is turbid and slowly turned clear, which is normal. After the filtrate is turned clear, the feed valve is fully opened.

6. The filter plate shall be placed in the specified quantity, and it is forbidden to start the operation if it is less than or larger than the specified number of filter plates.

7. When the filter plate moves on the main beam, the force should be balanced to prevent collision. The removed filter plates should be stacked flat to prevent deflection and often check the sealing of the sealing surface between the filter plates.

8. Rinse the filter cloth frequently, and carefully check the filter cloth to ensure that it is not folded, no damage, no slag inclusion, so that it is kept flat and ensure the filtration effect.

9. Install the filter cloth to be flat and not to be folded.

10. When the machine is shut down, the residue should be cleaned, so that the filter press can be kept clean, and the deposit on the slide of the trolley can be cleared in time to ensure the smoothness of the pull plate.

11. Pay attention to whether the connecting parts of each part are loose or not, and should be tightened at any time.

12. When flushing the filter plate and filter cloth, be careful not to let water splash on the travel switch to avoid malfunction of the machine.

13. When the main beam is found to be bent, adjust the compression adjustment lever.

14, the water temperature of the press must be guaranteed between 30 ~ 40 ° C, the cavity tympanic membrane is prohibited.

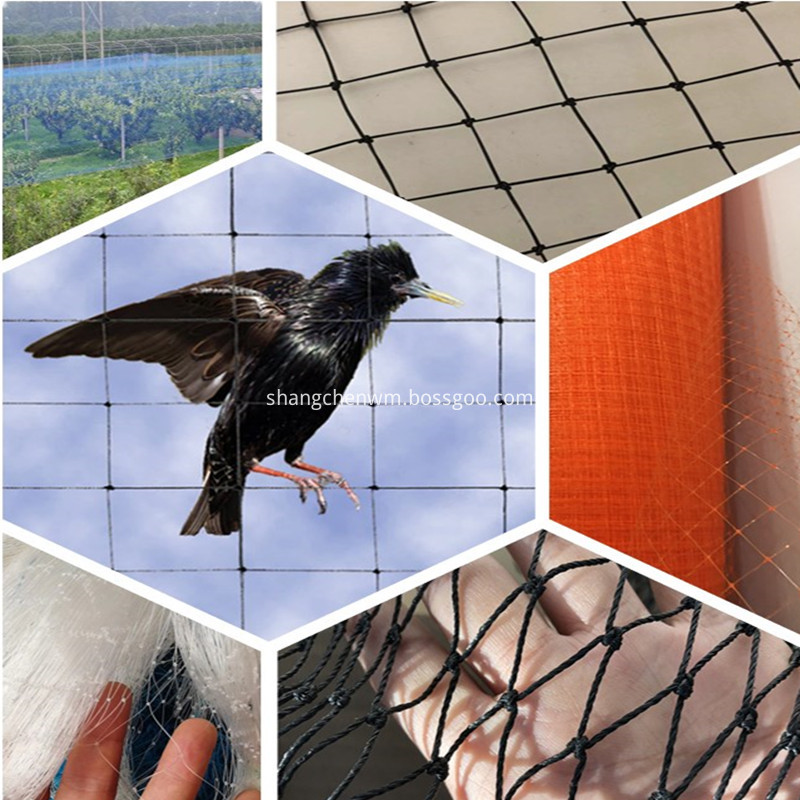

Anti Bird Net

Anti Bird Net

Anti-bird net is a kind of polyethylene, high-density polyethylene, polypropylene and nylon which are added with anti-aging and anti-ultraviolet chemical additives. It is a kind of plastic woven mesh and anti bird net has the advantages of high tensile strength, heat resistance, water resistance, corrosion resistance, aging resistance, non-toxic and tasteless, and easy disposal of waste. It can kill common pests such as flies and mosquitoes. The conventional use of the collection is light, and the correct storage life can reach 3-5 years.

Bird-proof net cover cultivation is a new environmentally-friendly agricultural technology that increases production and practicality. It builds artificial isolation barriers on the scaffolding, rejects birds outside the net, cuts off bird breeding routes, and effectively controls various types of birds. Spread and prevent the spread of viral diseases. And it has the functions of light transmission and moderate shading to create favorable conditions for crop growth.

The bird-proof net also has the function of resisting natural disasters such as storm erosion and hail attack.

Beyond garden, the anti bird net also be used in airport, building, residential houses, etc.
